韦米主营5790600220安沃驰AVENTICS二位三通换向阀；上海韦米机电设备有限公司主营销售产品，产品实拍，原装正品，客户买的安心，用的放心。常用产品现货供应，欢迎新老客户询价采购！

产品简介：

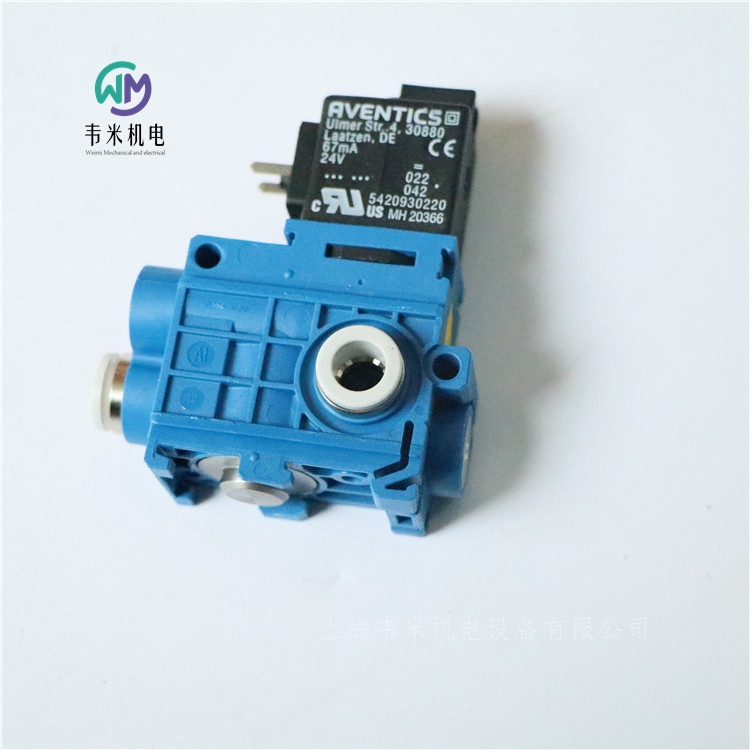

安沃驰AVENTICS二位三通换向阀, 系列 579-5790600220

结构特点 提动阀

外壳 聚酰胺

密封件材料 丙烯树胶,聚氨酯

防护等级 IP65

接口尺寸 ISO 15217, C 型

类型 多芯插头

额定流量Qn 850 l/min

压缩空气 接口 人口  8x1

压缩空气 接口 出口  8x1

工作电压DC 24 V

操作 电子

结构特点  提动阀

操作  电子

先导  内部

密封原理  软密封

工作压力范围  2 ... 8 bar

低 / 高环境温度  -15 ... 50 °C

介质温度范围  -15 ... 50 °C

介质  压缩空气

颗粒大小 max.  5 μm

压缩空气中的含油量  0 ... 1 mg/m3

额定流量Qn  850 l/min

防护等级 带接口  IP65

反向极性保护  反极性保护

暂载率  100 %

接通时间型号  18 ms

关闭时间型号  16 ms

重量  0,093 kg

环境温度高达 40 °C 条件下，高压力为 10 bar 。

电压小于 50 V DC 则不带保护触点。

不可超过小控制压力，否则会导致故障电路和可能发生阀故障！

压力必须至少低于环境和介质温度 15 °C ，并且允许的温度为 3 °C 。

压缩空气的油含量必须在整个使用寿命中保持不变。

主营型号：

5790600220 V579-3/2NC-DA08-024DC-04-RV1

5798600220 V579-3/2NC-DA08-024DC-04-RV10

5790069690 V579-3/2NC-DA08-024DC-04-RV10-MODI

5790670220 V579-3/2NC-DA08-024DC-04-RV1-EXT

5790670620 V579-3/2NC-DA08-024DC-04-RV1-EXT-LED

5790600620 V579-3/2NC-DA08-024DC-04-RV1-LED

5790068470 V579-3/2NC-DA08-024DC-04-RV1-MODI-LED

5791600220 V579-3/2NC-DA08-024DC-04-RV2

5791670220 V579-3/2NC-DA08-024DC-04-RV2-EXT

5791670620 V579-3/2NC-DA08-024DC-04-RV2-EXT-LED

5791600620 V579-3/2NC-DA08-024DC-04-RV2-LED

5790069860 V579-3/2NC-DA08-024DC-04-RV2-MODI

5790068460 V579-3/2NC-DA08-024DC-04-RV2-MODI-LED

5792600220 V579-3/2NC-DA08-024DC-04-RV4

5792670220 V579-3/2NC-DA08-024DC-04-RV4-EXT

5792670620 V579-3/2NC-DA08-024DC-04-RV4-EXT-LED

5792600620 V579-3/2NC-DA08-024DC-04-RV4-LED

5790069850 V579-3/2NC-DA08-024DC-04-RV4-MODI

5790068450 V579-3/2NC-DA08-024DC-04-RV4-MODI-LED

5795600220 V579-3/2NC-DA08-024DC-04-RV5

5796600220 V579-3/2NC-DA08-024DC-04-RV7

5796670220 V579-3/2NC-DA08-024DC-04-RV7-EXT

5796670620 V579-3/2NC-DA08-024DC-04-RV7-EXT-LED

5796600620 V579-3/2NC-DA08-024DC-04-RV7-LED

R414008487 V579-3/2NC-DA08-024DC-04-RV7-MODI

5797600220 V579-3/2NC-DA08-024DC-04-RV9

5794600000 V579-3/2NC-DA08-04-EV4

5790600000 V579-3/2NC-DA08-04-RV1

5791600000 V579-3/2NC-DA08-04-RV2

5792600000 V579-3/2NC-DA08-04-RV4

5794605270 V579-3/2NC-DA08-110AC-04-EV4

5794675270 V579-3/2NC-DA08-110AC-04-EV4-EXT

5790605270 V579-3/2NC-DA08-110AC-04-RV1

5790675270 V579-3/2NC-DA08-110AC-04-RV1-EXT

5791605270 V579-3/2NC-DA08-110AC-04-RV2

5791675270 V579-3/2NC-DA08-110AC-04-RV2-EXT

5792605270 V579-3/2NC-DA08-110AC-04-RV4

5792675270 V579-3/2NC-DA08-110AC-04-RV4-EXT

5796605270 V579-3/2NC-DA08-110AC-04-RV7

5796675270 V579-3/2NC-DA08-110AC-04-RV7-EXT

5794605280 V579-3/2NC-DA08-230AC-04-EV4

5794675280 V579-3/2NC-DA08-230AC-04-EV4-EXT

5794675680 V579-3/2NC-DA08-230AC-04-EV4-EXT-LED

5794605680 V579-3/2NC-DA08-230AC-04-EV4-LED

5790069520 V579-3/2NC-DA08-230AC-04-EV4-MODI

5790605280 V579-3/2NC-DA08-230AC-04-RV1

5790675280 V579-3/2NC-DA08-230AC-04-RV1-EXT

5790675680 V579-3/2NC-DA08-230AC-04-RV1-EXT-LED

5790605680 V579-3/2NC-DA08-230AC-04-RV1-LED

5791605280 V579-3/2NC-DA08-230AC-04-RV2

5791675280 V579-3/2NC-DA08-230AC-04-RV2-EXT

5791675680 V579-3/2NC-DA08-230AC-04-RV2-EXT

5791605680 V579-3/2NC-DA08-230AC-04-RV2-LED

5792605280 V579-3/2NC-DA08-230AC-04-RV4

5792675280 V579-3/2NC-DA08-230AC-04-RV4-EXT

5792675680 V579-3/2NC-DA08-230AC-04-RV4-EXT-LED

5792605680 V579-3/2NC-DA08-230AC-04-RV4-LED

5796605280 V579-3/2NC-DA08-230AC-04-RV7

5796675280 V579-3/2NC-DA08-230AC-04-RV7-EXT

5796675680 V579-3/2NC-DA08-230AC-04-RV7-EXT-LED

5796605680 V579-3/2NC-DA08-230AC-04-RV7-LED

5794410310 V579-3/2NO-D014-012DC-04-EV4-USA

5790410310 V579-3/2NO-D014-012DC-04-RV1-USA

5791510310 V579-3/2NO-D014-012DC-04-RV2-USA

5792510310 V579-3/2NO-D014-012DC-04-RV4-USA

5794410320 V579-3/2NO-D014-024DC-04-EV4-USA

5790410320 V579-3/2NO-D014-024DC-04-RV1-USA

5790069410 V579-3/2NO-DA04-024DC-02-RV1-MODI

5790069400 V579-3/2NO-DA04-024DC-02-RV2-MODI

5794410210 V579-3/2NO-DA06-012DC-04-EV4

5794420210 V579-3/2NO-DA06-012DC-04-EV4-EXT

5790510210 V579-3/2NO-DA06-012DC-04-RV1

5790520210 V579-3/2NO-DA06-012DC-04-RV1-EXT

5791510210 V579-3/2NO-DA06-012DC-04-RV2

5791520210 V579-3/2NO-DA06-012DC-04-RV2-EXT

5792510210 V579-3/2NO-DA06-012DC-04-RV4

5792520210 V579-3/2NO-DA06-012DC-04-RV4-EXT

5796410210 V579-3/2NO-DA06-012DC-04-RV7

5796510210 V579-3/2NO-DA06-012DC-04-RV7

5796420210 V579-3/2NO-DA06-012DC-04-RV7-EXT

5796520210 V579-3/2NO-DA06-012DC-04-RV7-EXT

5794415220 V579-3/2NO-DA06-024AC-04-EV4

5794425220 V579-3/2NO-DA06-024AC-04-EV4-EXT

5790515220 V579-3/2NO-DA06-024AC-04-RV1

5790525220 V579-3/2NO-DA06-024AC-04-RV1-EXT

5791515220 V579-3/2NO-DA06-024AC-04-RV2

5791525220 V579-3/2NO-DA06-024AC-04-RV2-EXT

5792515220 V579-3/2NO-DA06-024AC-04-RV4

5792525220 V579-3/2NO-DA06-024AC-04-RV4-EXT

5796415220 V579-3/2NO-DA06-024AC-04-RV7

5796515220 V579-3/2NO-DA06-024AC-04-RV7

5796425220 V579-3/2NO-DA06-024AC-04-RV7-EXT

5796525220 V579-3/2NO-DA06-024AC-04-RV7-EXT

5794410220 V579-3/2NO-DA06-024DC-04-EV4

5794420220 V579-3/2NO-DA06-024DC-04-EV4-EXT

5794420620 V579-3/2NO-DA06-024DC-04-EV4-EXT-LED

5794410620 V579-3/2NO-DA06-024DC-04-EV4-LED

5790510220 V579-3/2NO-DA06-024DC-04-RV1

5790520220 V579-3/2NO-DA06-024DC-04-RV1-EXT

5790520620 V579-3/2NO-DA06-024DC-04-RV1-EXT-LED

5790510620 V579-3/2NO-DA06-024DC-04-RV1-LED

5791510220 V579-3/2NO-DA06-024DC-04-RV2

5791520220 V579-3/2NO-DA06-024DC-04-RV2-EXT

公示： 因工业液压、自动化各进口品牌备件型号繁多，欧美产品价格实时变化，因此很难实时标出准确价格，请以业务员实际报价单价格为准！ 给您带来不便敬请谅解。
